AF Quick ground Sound

IAF Quick Ground Sound is a bedrock covering earth thichness meter.
It allows:

  • measurement of hard bedrock depth underliyng hearty materials;
  • extimation of resistence to penetration of different level in the hearty cover, (geotecnic qualitative stratigraphy) by measuring time penetration rate.

Engineered to operate in conjunction with AF coring system, it employes the same energizer and extractor.

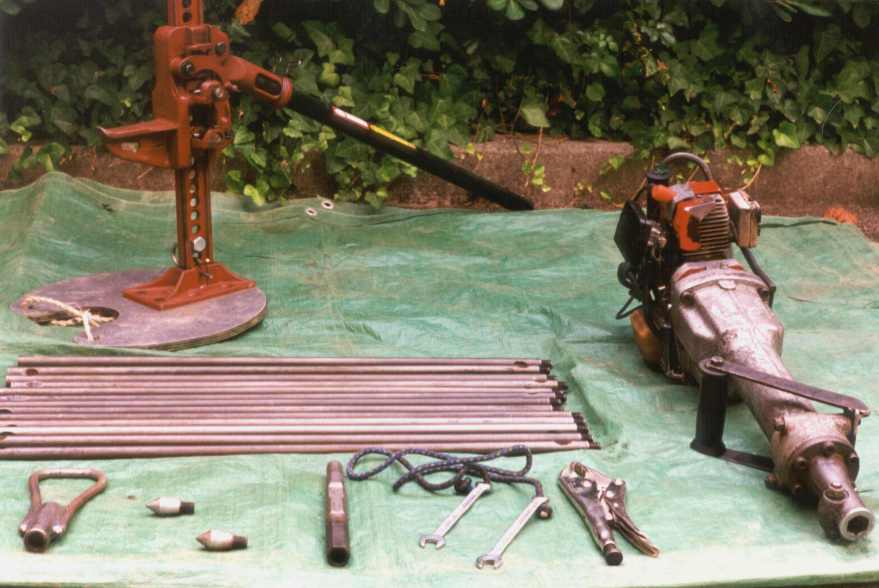

AF Quick Ground Sound components:

Drilling string

Heads

Energizer: self powered impulsive load generator (breaking hummer)

Extractor: High Lift Jack

DRILLING STRING
Cilindrical rods, F= 16 mm, AISI 8640 tempered and hardned; single bar lenght 70 cm. Maximum operating depth 20 m

HEADS
Self centering conical bits Fext = 20 mm

 RECOVERY SYSTEM
120 run extractor. Components:

  • High Lift Jack (Max pull 3000Kg)
  • Ground plate;
  • Hooks and string clamp

ENERGIZER
Gas driven light hummer; minimum energy 12.5J/strike, frequency 20-30 Hz
